eTYMP USB - Middle Ear Analyser

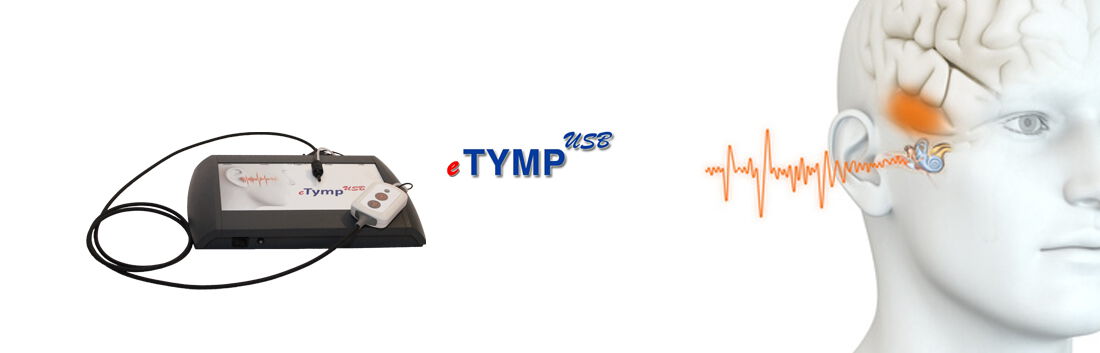

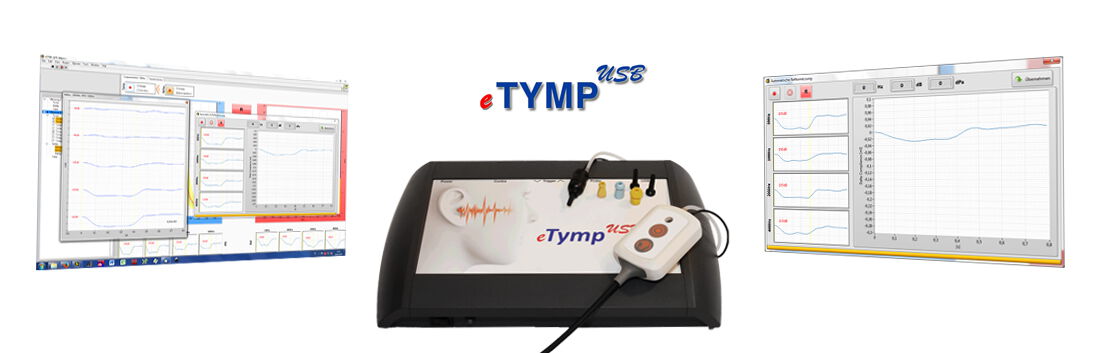

The eTYMP USB is a computer based middle ear analyzer for practical routine and clinical applications.
The eTYMP USB- offers the possibility to create user-defined test protocols by combining different tests from the test battery into one test flow. For instance you can create a simple screening procedure and a more in-depth evaluation.
The device is characterized by its compact, functional and attractive design.
- Overview
- Parameters
- Downloads

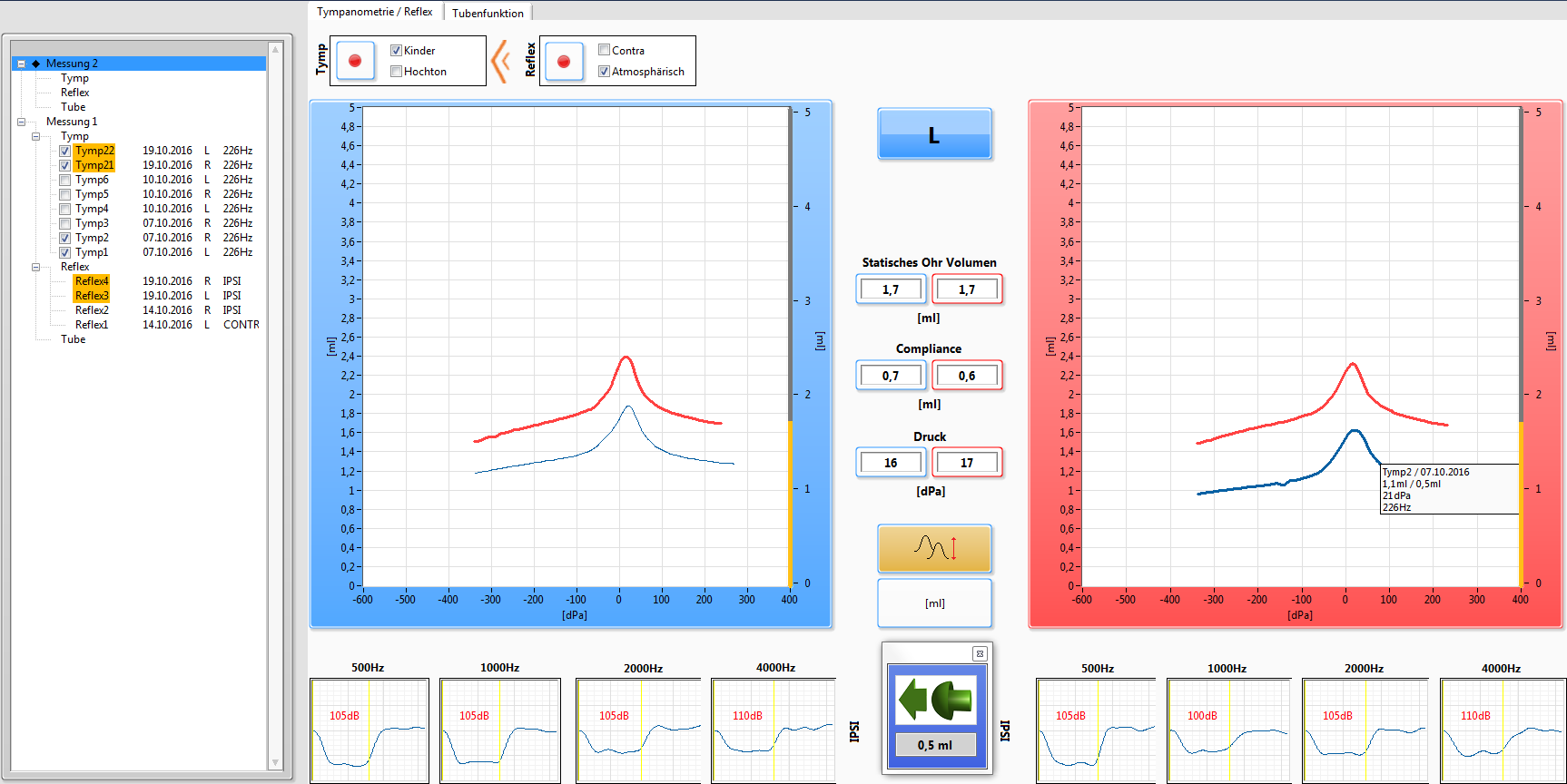

»» Tympanometry with 226 Hz (standard), 678 Hz and 1000 Hz
»» Pressure range - +400dPa - -600dPa
»» Compliance range - 0,2ml - 6ml
»» Acoustiv reflex - ipsilateral, contralateral* und free field*
»» Acoustiv reflex - ipsilateral, contralateral* und free field*
»» Acoustiv reflex - 500Hz, 1kHz, 2kHz and 4kHz
»» Reflexdecay - ipsilateral and contralateral*
»» Eustachian tube function (ETF) testing with intact and perforated tymp. membran
»» Small and lightweight probe, easy to clean, for standard ear plugs
»» Various trigger functionality over decoupled input and output.
»» Reflexdecay - ipsilateral and contralateral*
»» Eustachian tube function (ETF) testing with intact and perforated tymp. membran
»» Small and lightweight probe, easy to clean, for standard ear plugs
»» Various trigger functionality over decoupled input and output.
»» Full automatic or manuel measurement
»» USB 2.0
»» USB 2.0
*Optional
System
Admittance Measurements
»» Probe tone frequencies: 226 Hz , 678 Hz, 1000 Hz ± 1%
»» Probe tone intensities: 85 dB SPL ±3dB.
»» THD+N: < 4% ((acoustical measured)
»» Probe tone intensities: 85 dB SPL ±3dB.
»» THD+N: < 4% ((acoustical measured)
»» Pressure range: +400 bis -600 daPa. ±5% or 10 daPa
»» Pressure velocity: 100-350 daPa/sec.
»» Compliance range: 0,2- 6,0 ml ±5% or 0,1 ml
»» Compliance unit: Equivalent air volume [ml] or mmho
»» Pump control: Automatic/manual
»» Compliance graph: unlimited
Acoustic Reflex
»» Pure tone: 500,1000, 2000 and 4000 Hz +/- 3%
»» IPSI intesity: max. 110 dBHL +/- 3dB
»» CONTRA intensity: max. 120 dBHL +/- 3dB
»» CONTRA head phone - DD45
»» THD+N: < max. 5% (acoustical measured)
»» Min. intensity: 40 dBHL
»» Automatic Test: 5 dB/10 dB Steps per Frequency
»» Reflexdecay - 10s
Eustachian Tube Function
»» Perforated ear drum: Active and passive tube opening (valsalva maneuver)
»» Intact ear drum: Williams test (3 Curves per Ear)
General
»» Size (LxHxW): 310mmx105mmx250mm
»» Weigth: ca. 1500 g
»» Weight Probe:: 12g
»» Weigth: ca. 1500 g
»» Weight Probe:: 12g
»» Power consumption:: max.20W
»» Interface: USB2.0
»» CONTRA Output: 6,35mm
»» Triggerin- output: 3.5mm, 5kV isolated
»» LED Probe: 6 colors
»» LED Probe: 6 colors
»» Standards: DIN EN 60645-5, DIN EN 60601-1, EWG 93/42 EEC
System requirements
>> Prozessor: Intel i5
>> RAM: 4 GB
>> Graphic: 2 GB RAM
>> Screen: 1600x900 Resolution (better Full HD)
