eABR USB - Auditory evoked potentials

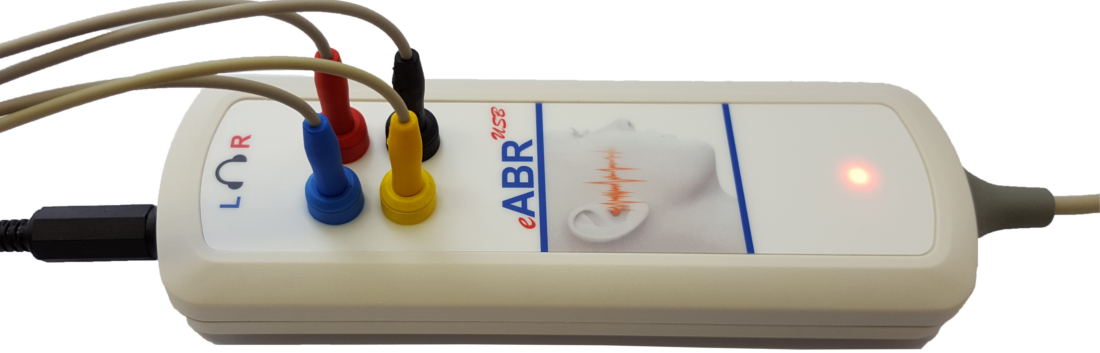

eABR USB - the preamplifier as a complete unit. Integrated into an ergonomic housing, the eABR USB offers the functionality of a large AEP measuring station. Genuine 2-channel technology, battery-powered measurement, state-of-the-art signal processing and easy-to-use software complete the entire package.

  • Overview
  • Parameters
  • Downloads / Videos

»» Automated assistend functions:
   - Automatic electrode impedance control
   - Automatic gain control (AGC)
   - Automatic artefact rejection
   - Automatic stop function
»» 24 Bit conversation
»» Free definable profiles e.g. Treshhold-BERA

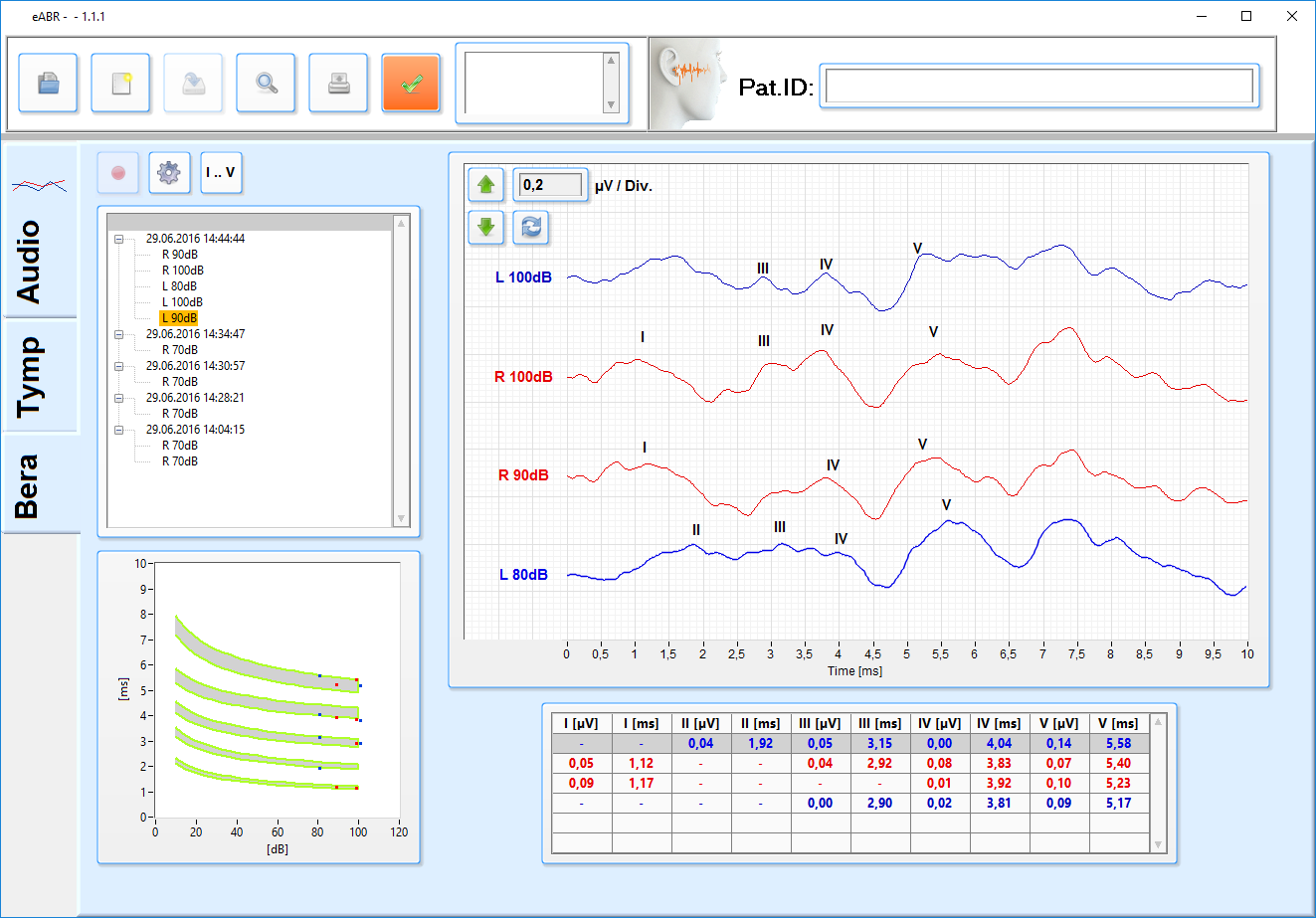

»» easy to use curve handling
»» automated coupler detection
»» Automatic PDF Export
»» Lifetime free online software update

System

»» AC-Phones: Sennheiser HDA 280, Radioear IP 30 Bera
»» Click, Burst, Chirp
»» Click: Pos., Neg. Alt.
»» Masking: Noise
»» ADC: 2 Channel 24 Bit
»» CMR > 130 dB @ 50 Hz/60HZ
»» Up to 10.000 Sweeps
»» USB 2.0
»» EN 60645-7
»» Windows 7,8,10

min. computer requirements

>> Processor: Intel i5
>> RAM: 4 GB
>> Video card: 2 GB RAM
>> Screen resolution: 1600x900 Pixel
